Machine Capabilities

Capacity List - Sheffield

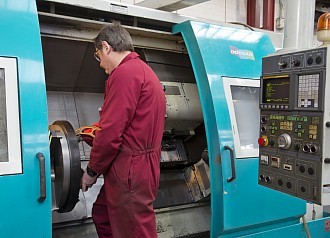

CNC Turning

Model Max
Diameter
(mm)
Max
Bar
(mm)
Max
Length
(mm)
Doosan 550 CNC 430 95 1,095
Colchester Tornado 300 CNC 300 71 400
Colchester Tornado 200 CNC 200 71 320
Colchester Combi 6000 CNC 500 120 3,000

Turning - Non-CNC

Model Max
Diameter
(mm)
Max
Bar
(mm)
Max
Length
(mm)
Poreba 760 N/A 2,000

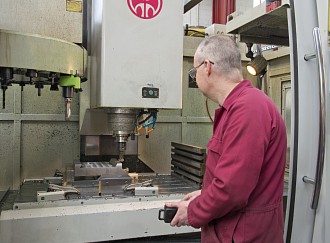

3- & 4-Axis Vertical & Horizontal CNC Milling

Model Max
"X"
(mm)
Max
"Y"
(mm)
Max
"Z"
(mm)
Doosan DNM 5700 1,050 570 510
Eumach 1400 1,300 650 680
Eumach 1000 1,000 600 550
Haas VF0 762 406 508

Vertical Boring

Model Max
Diameter
(mm)
Max
Height
(mm)
Tos Hulin 1,500 900
Webster Bennett 1,200 700

Horizontal Boring

Model Max
"X"
(mm)
Max
"Y"
(mm)
Max
"Z"
(mm)
Tos 100A 1,350 1,250 1,200

Radial Drilling

Model Radius
(mm)
Table
Size
(mm)
Town Woodhouse  1,800 1,200 x 800

Quality Control

Model Max
"X"
(mm)
Max
"Y"
(mm)
Max
"Z"
(mm)
FaroArm - Potable CMM 600 600 600

Grinding

  Max
Diameter
(inches)
Max
Length
(inches)
Churchill Universal  15" 45"
Churchill Internal 14" 24"
Jones and Shipman 540 19" 6.75"
Jones and Shipman 1310 5" 17"
Surface Grinding 460 x 250 x 160

Capacity List - Birstall

CNC Turning

Model Max
Diameter
(mm)
Max
Bar
(mm)
Max
Length
(mm)
Colchester Tornado 110 CNC Lathe + Bar Feed 200 45 300
Colchester Tornado 310 CNC Lathe + Bar Feed 300 75 400
Colchester Tornado 300 CNC Lathe 300 75 400

3- & 4-Axis Vertical & Horizontal CNC Milling

Model Max
"X"
(mm)
Max
"Y"
(mm)
Max
"Z"
(mm)
Doosan DNM 5700 1,050 570 510
Doosan DNM 4500 800 450 510
XYZ 500LR 510 400 450

Quality Control

Model Max
"X"
(mm)
Max
"Y"
(mm)
Max
"Z"
(mm)
Mitutoyo Euro C544 CMM 500 400 400
